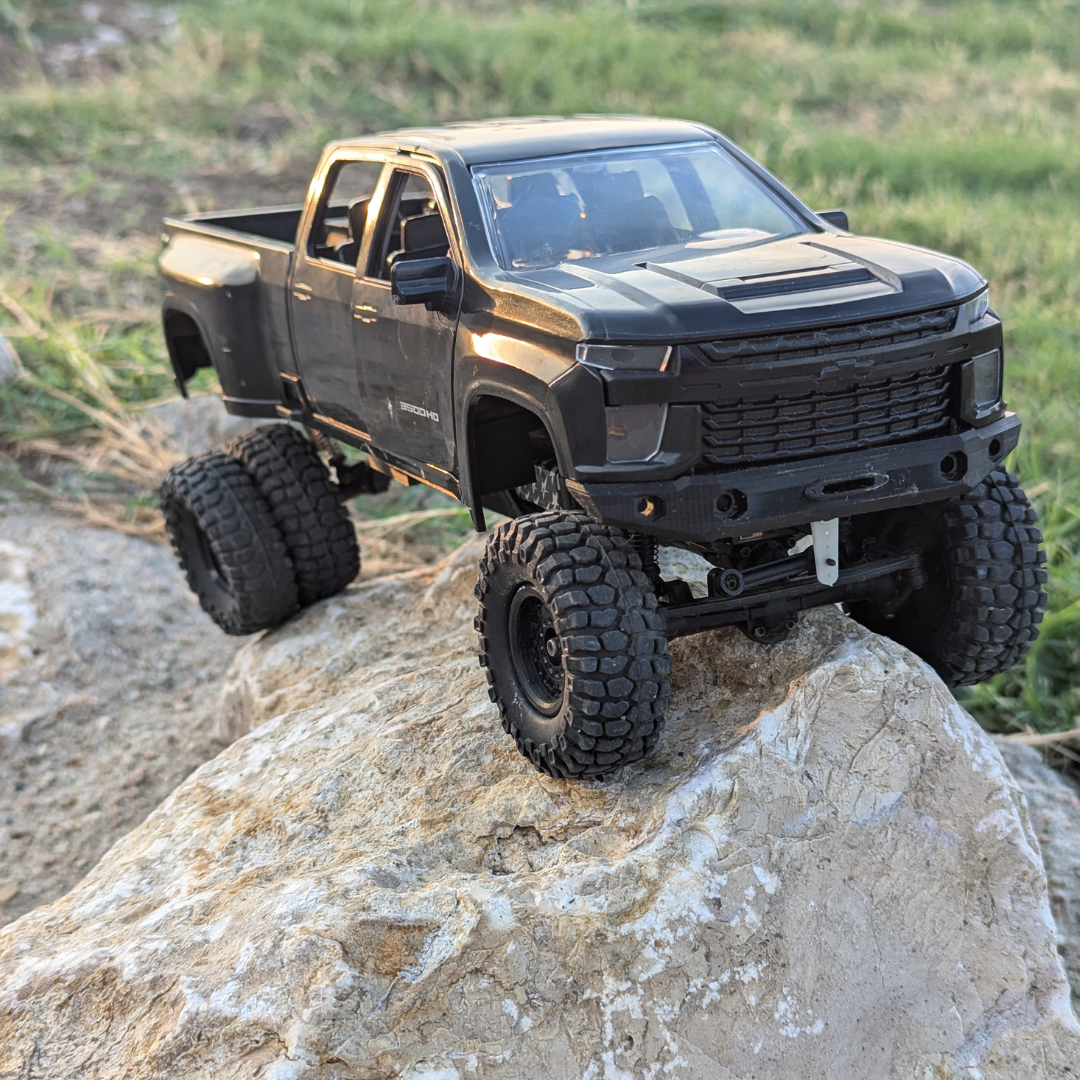

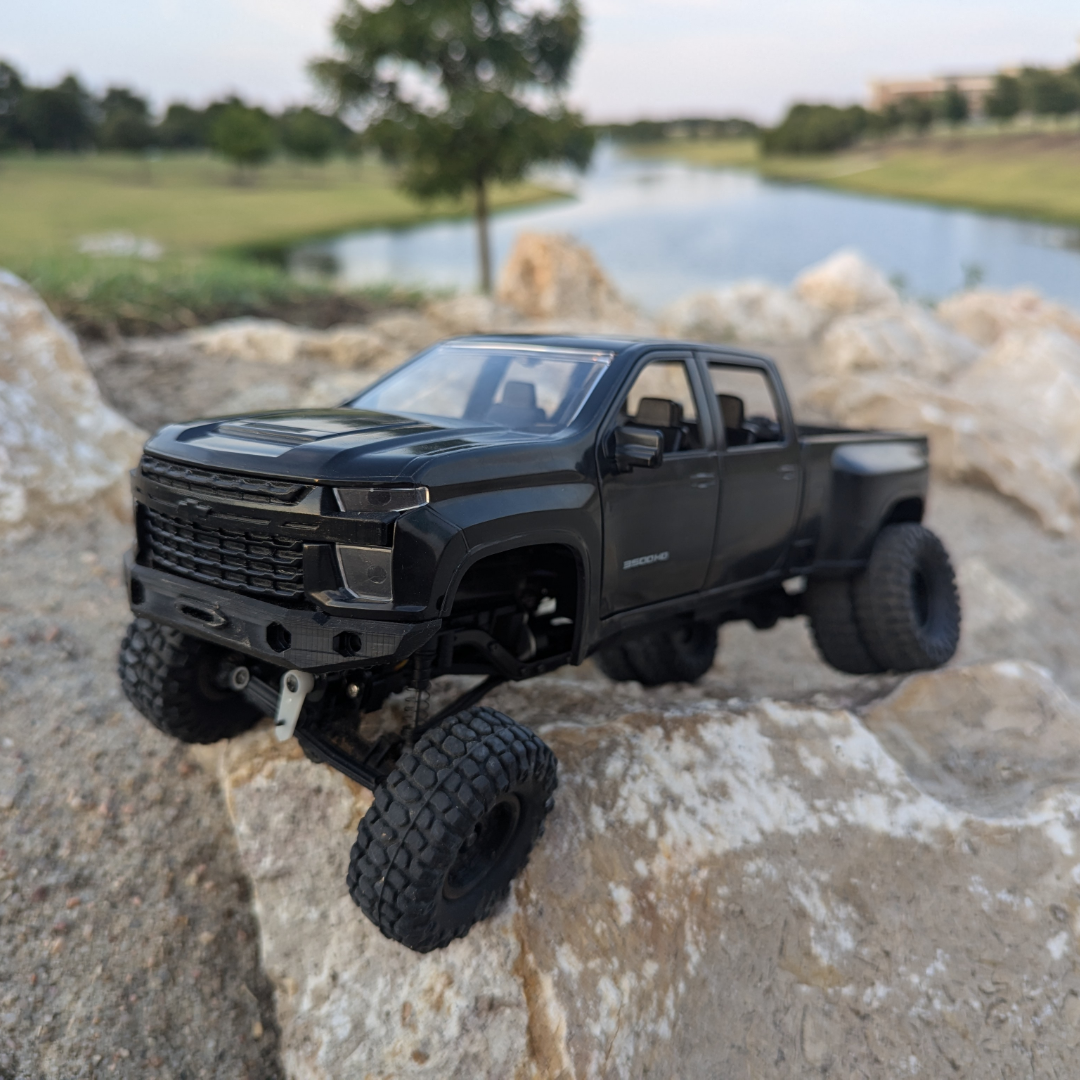

Chevy 3500 Scx24 Conversion kit
Chevy 3500 Scx24 Conversion kit
(Optional Pre-assembled includes body By request only at a separate price)Lead time: 4-7 days (all kits are fabricated upon being ordered) Kits are Hand-built. Assembled in the USA

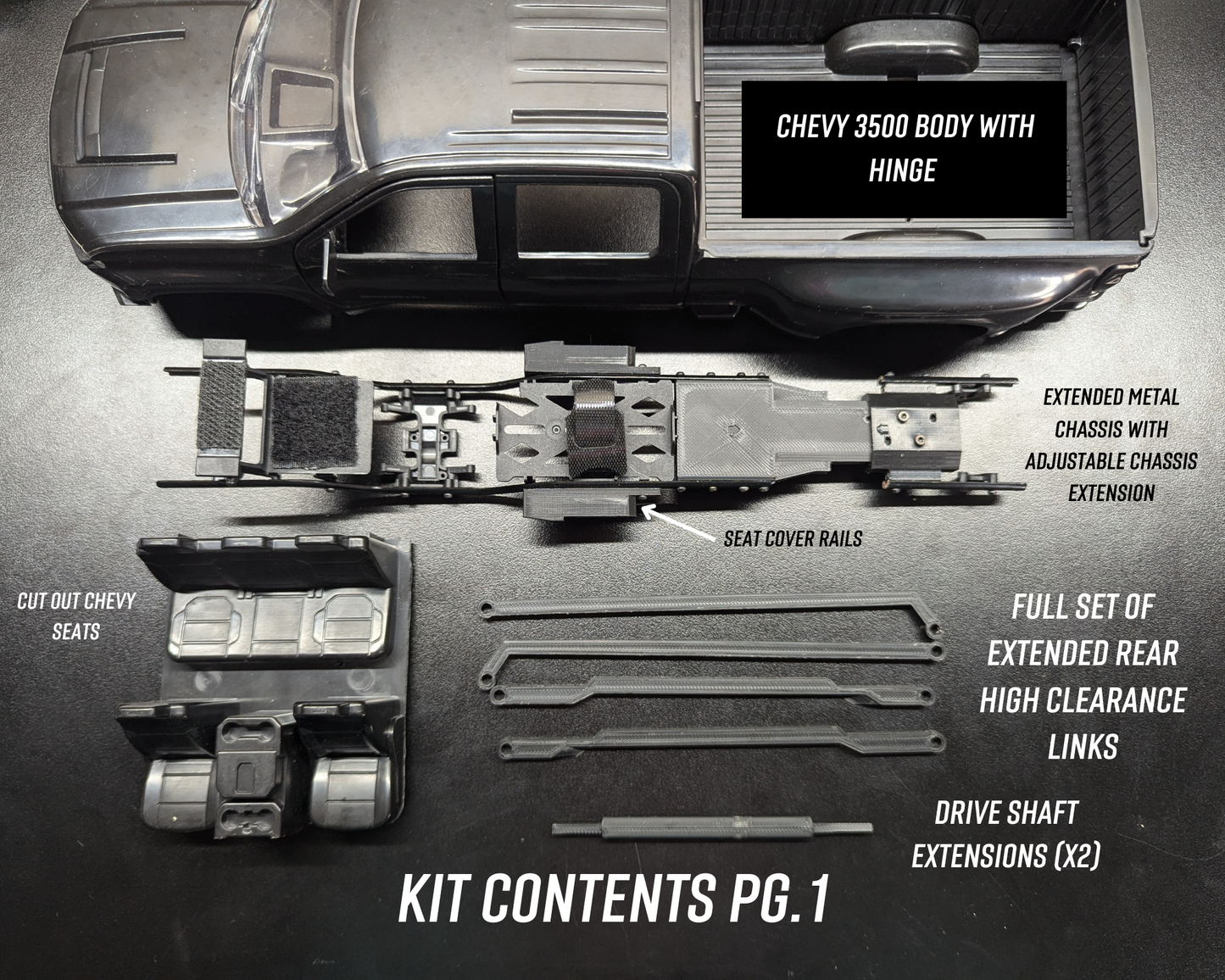

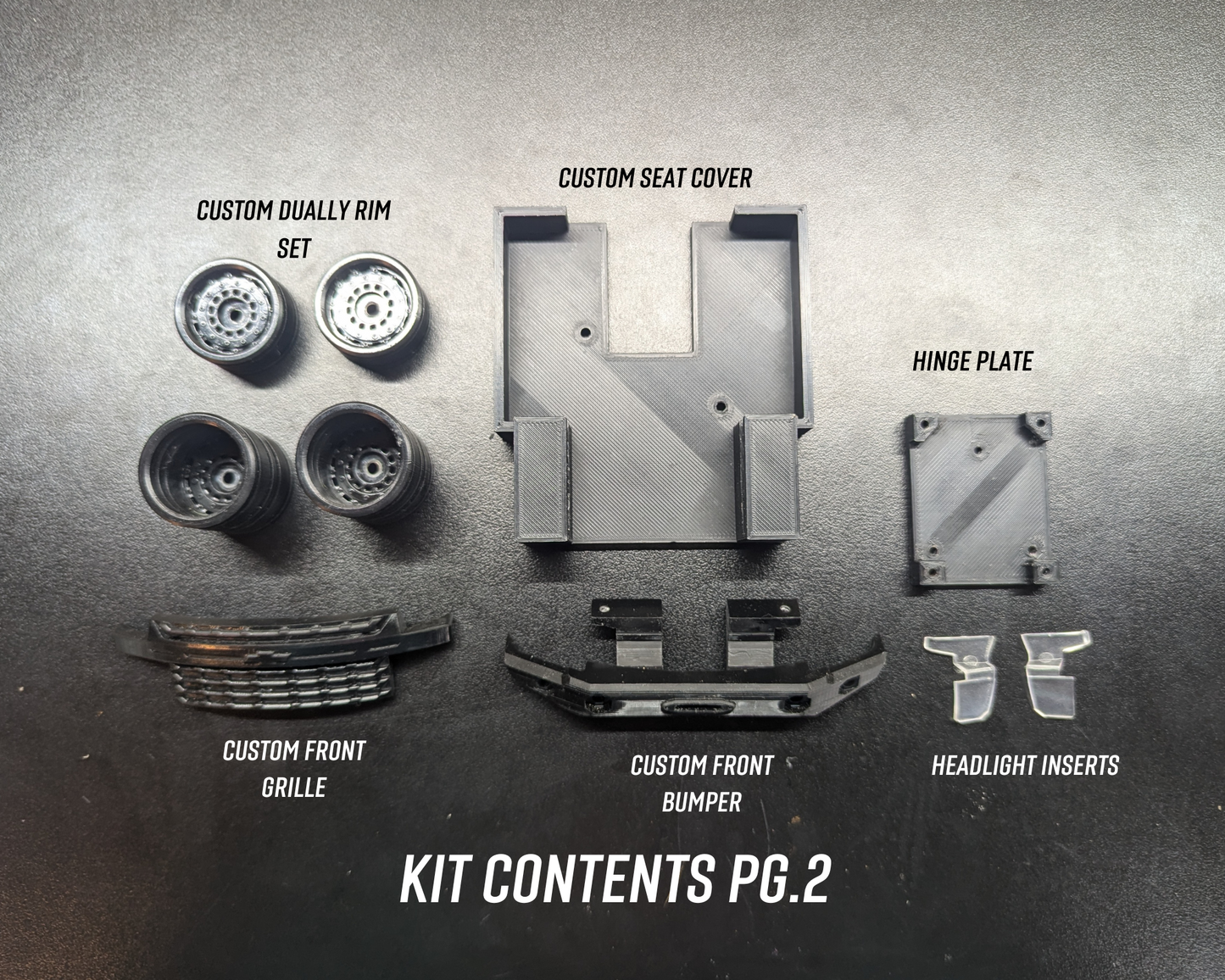

*Above kit contents images reflect PRE-ASSEMBLED KIT contents, DIY KIT contents only differ by NOT INCLUDING THE BODY.*
Kit Compatible with the following SCX24 models: Jeep Gladiator, Jeep Wrangler, C10, and Bronco.
Starred* Components are 3D printed from PLA MAX material in varying infills
Double Starred** Components are Resin Printed from ABS-like Black resin
ALL structural components are 100% infill
Features:

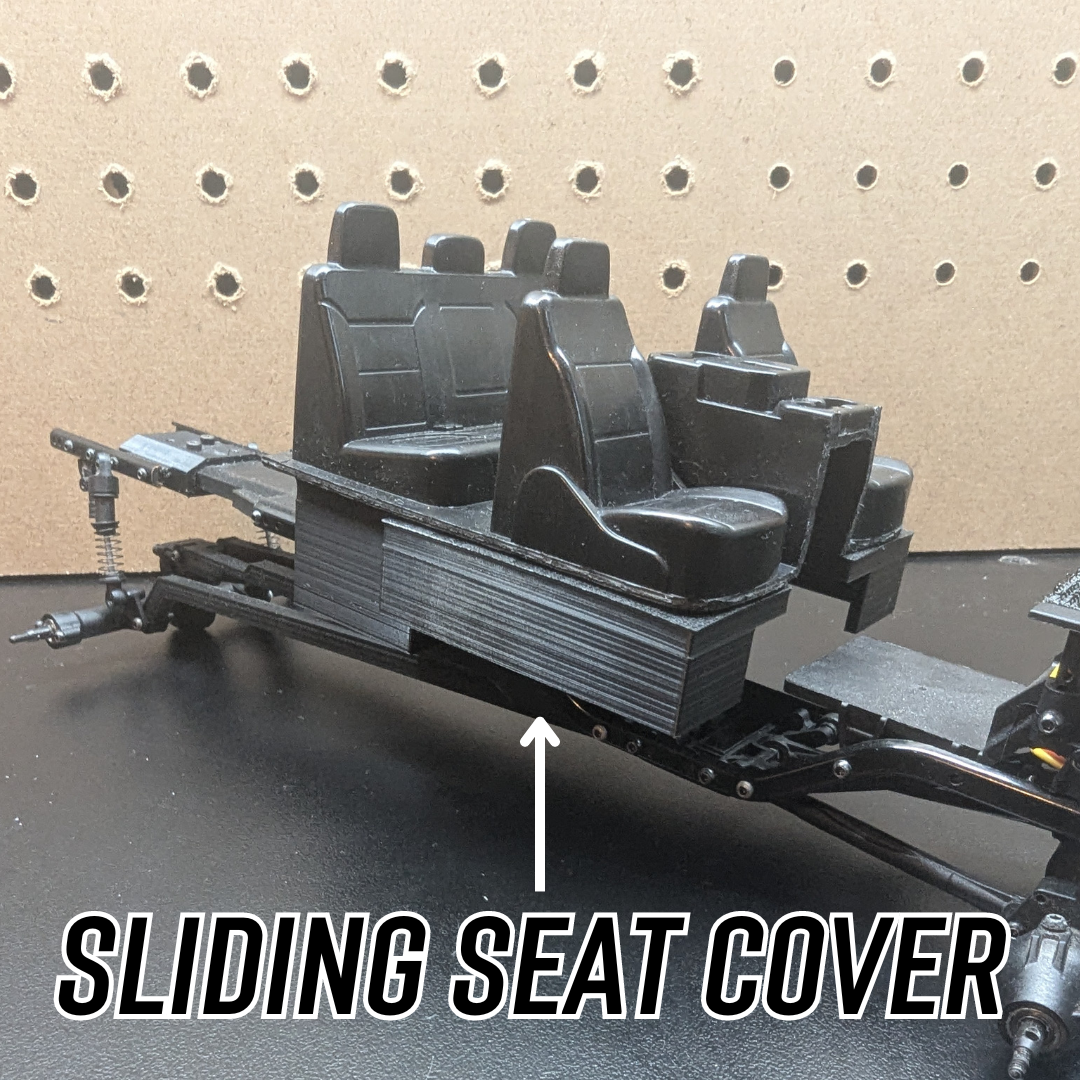

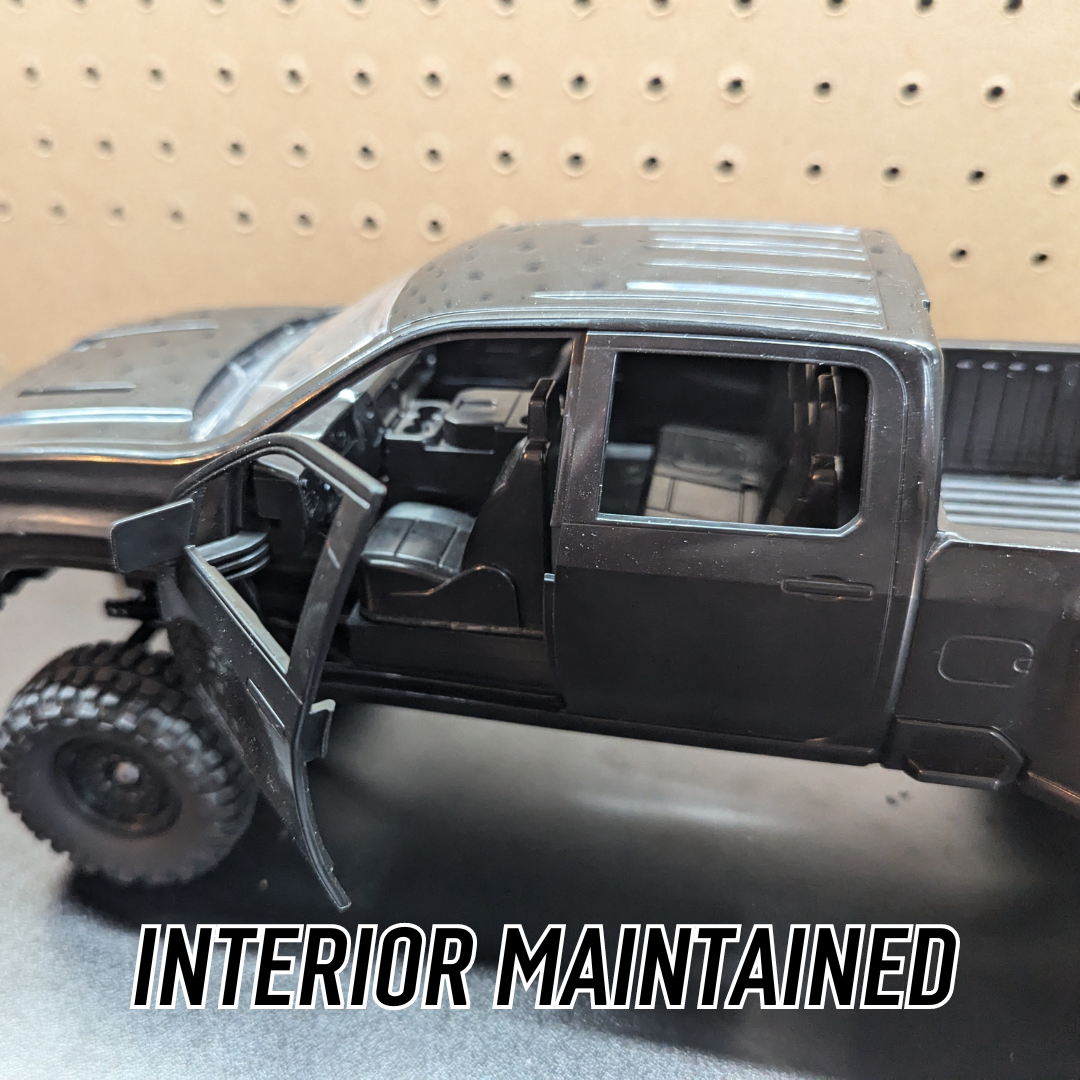

- Includes sliding seat cover to maintain interior for better scale realism

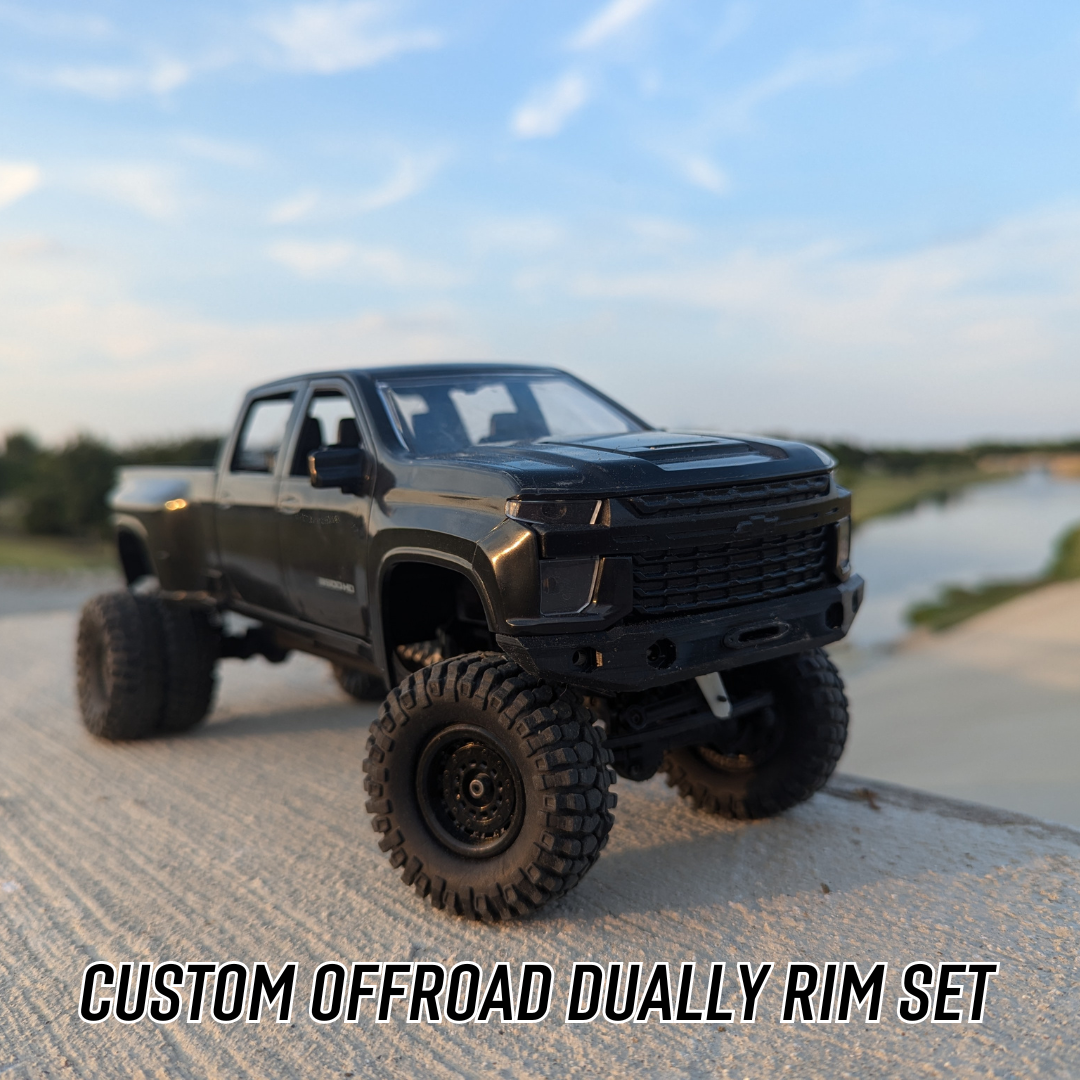

- Blacked out offroad dually rim set of 4

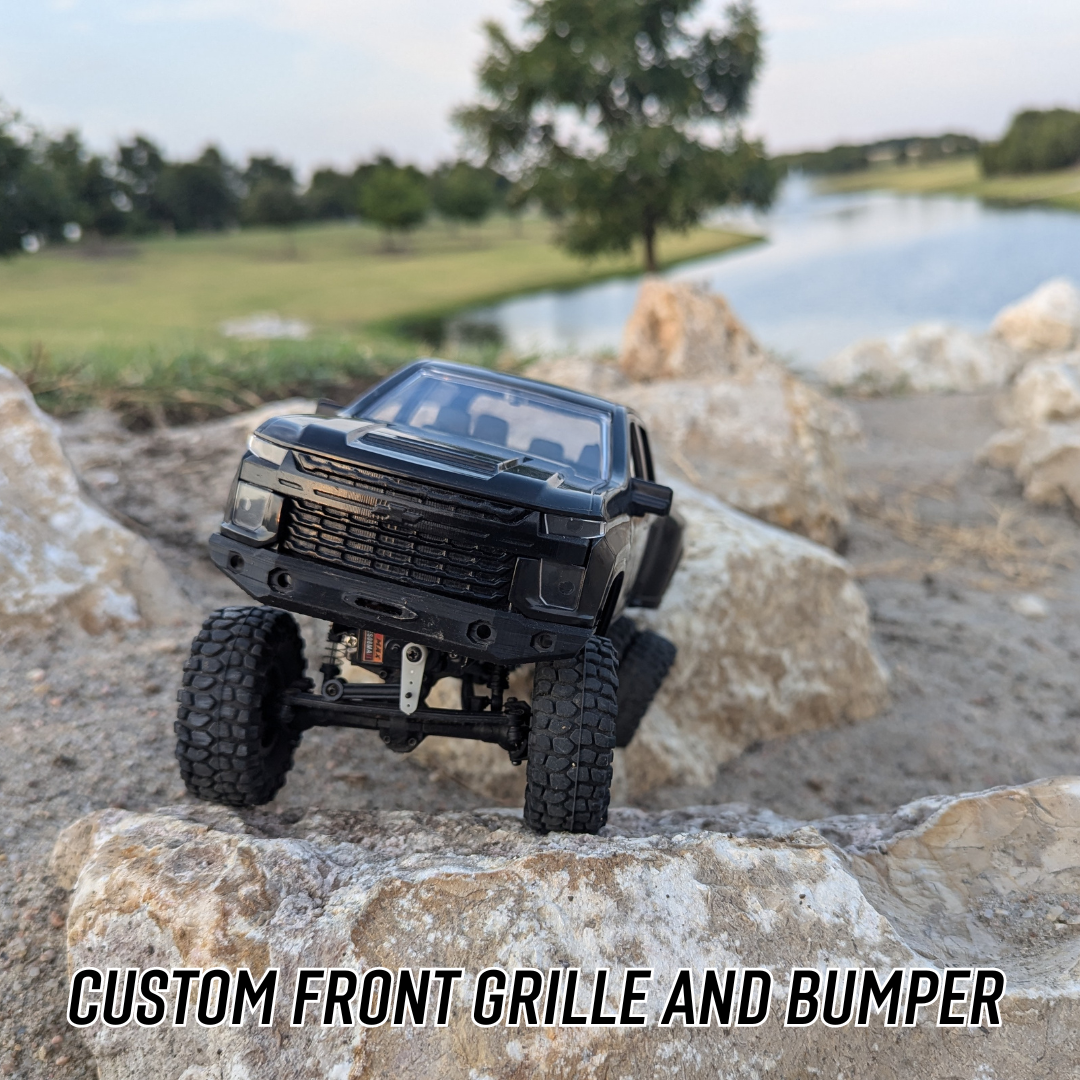

- Custom Chevy Front Grille with aggressive design
- Custom Offroad Chevy Front bumper with improved approach angle and holes for SCX24 lights

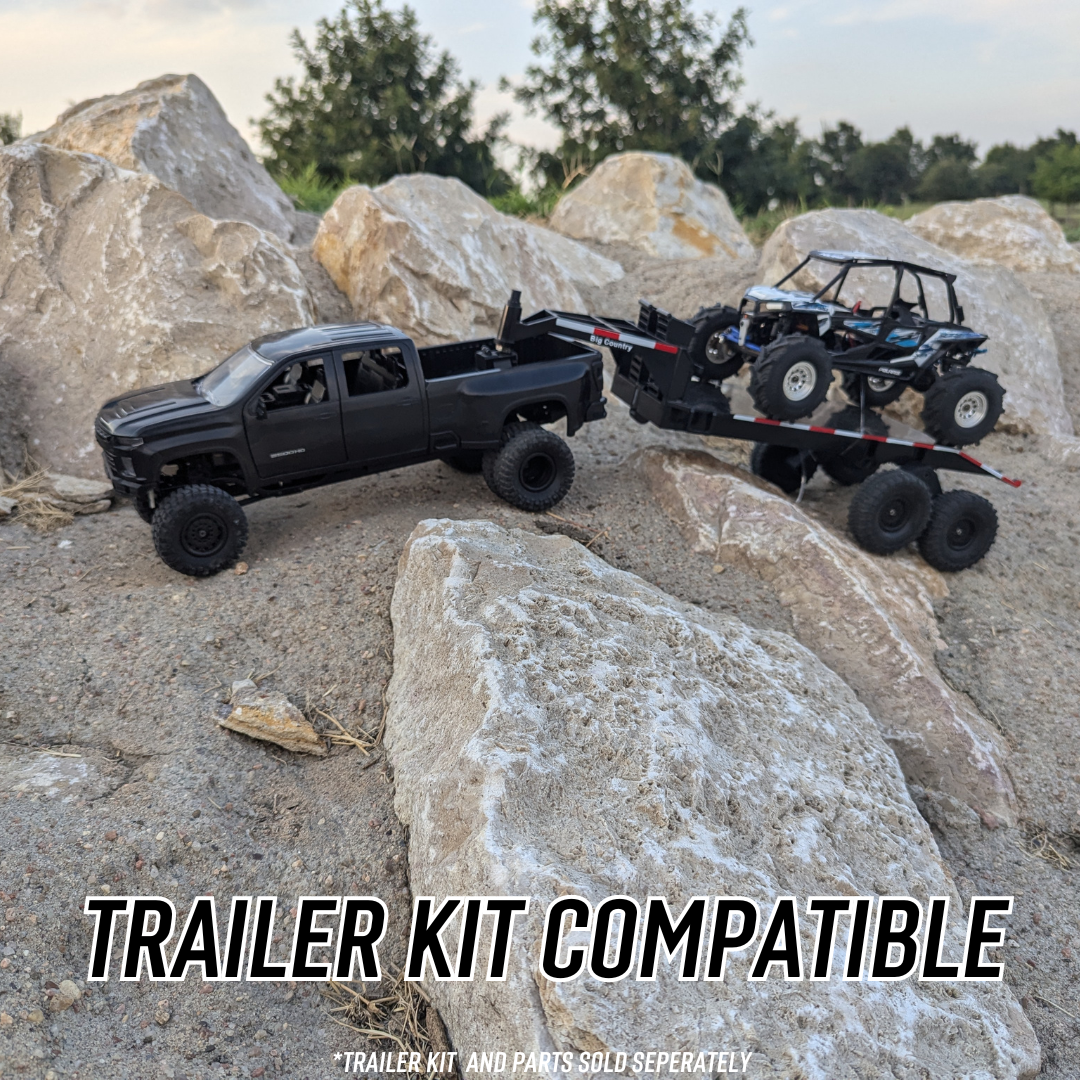

- Truck body compatible with ADG Trailer Lift/ Hitch kit
- Optional Head Light hole positions
DIY FULL KIT Includes:
(Nothing is pre-assembled or cut (only parts and hardware included) in DIY FULL KIT)
- *BODY NOT INCLUDED IN THIS CONFIGURATION*
- Instructions for DIY installation Included
- Body hinge
- Hinge plate*
- Extended metal chassis with extension components
- XL Chassis Extension*
- XL Extended rear Link set with High clearance design*
- XL Driveshaft extension 1 spare included*
- Interior sliding seat cover*
- Custom Front Bumper**
- Custom Front Grille**
- Custom Dually rim set of 4**
Required to Complete PRE-FULL KIT/ DIY FULL KIT:
- Will need to source your own Chevy Body in the DIY KIT CONFIGURATION.
- Transmitter, Esc, motor & servo.( higher torque Motor and servo recommended)
- Scx24 Transmission
- 6 tires( 2 front, 4 rear)
- Stock front and rear axles
- Stock Scx24 front link set up
- Standard Front and rear Drive shaft, Plus medium end drive shaft.
- 4 wheel lug nuts
- 8 pivot balls from stock rear links
- 4 shocks ( stiffer springs recommended)
- (Optional)lights for front bumper and headlights
- stock screws/hardware are to be reused as needed throughout install
INSTRUCTIONS: will be provided via email upon order
Note: The body included in this kit is NOT Fabricated or designed by Atlan Design Group
Disclaimer: All bodies included in kits that are not fabricated or designed by Atlan Design Group are acquired from other vendors such as big country toys, new ray toys, and new bright. We do not have any control over fabrication of any of these bodies. For this reason we are not responsible for slight variations/ imperfections in the bodies.
Warning: This 3D printed Material is strong enough to withstand decently sunny days and quite a few tumbles, But in order to preserve the longevity of these parts do not leave in concentrated heat above 104 degrees for extended periods of time longer than 1 hour or this could cause the parts to warp. If this occurs regardless feel free to email us at atlandesigngroup@gmail.com for replacements.
